TrackAudio actions for Stream Deck

TrackAudio actions for Stream Deck

Get it on marketplace

Important

CRC does not support external audio clients, and does not expose an external interface for controlling audio. Therefore, this plugin cannot be used with CRC.

This Stream Deck plugin provides actions to interact with TrackAudio.

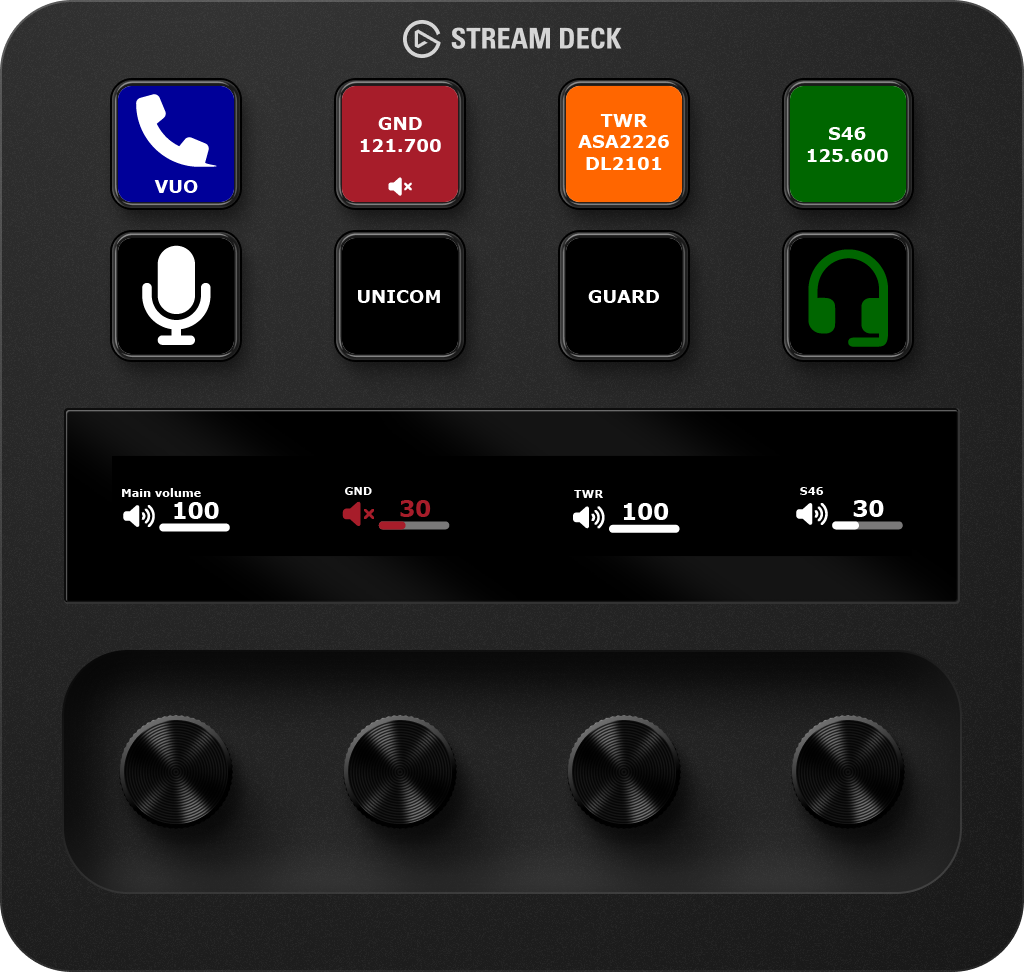

Screenshot a Stream Deck profile with buttons for stations, current ATIS letter, a hotline, and a push-to-talk button

Actions

Action Description
ATIS letter Shows the current ATIS letter for a specific station. If you are controlling with vATIS use the vATIS actions for Stream Deck plugin instead of this action.
Hotline Switches active TX between two stations, typically a primary controlling position and a secondary hotline position.
Main volume Adjust TrackAudio’s main volume.
Push to talk Triggers TX on all TX frequencies, as if pressing the push to talk key configured in TrackAudio.
Station status Shows the current RX, TX, or XCA for a specific station, last received callsigns, and station frequencies. Supports toggling either mute or station state.
Station volume Adjust a station’s volume, or mute a station.
TrackAudio status Shows the current state of the connection to TrackAudio from Stream Deck and whether TrackAudio is voice connected to VATSIM.

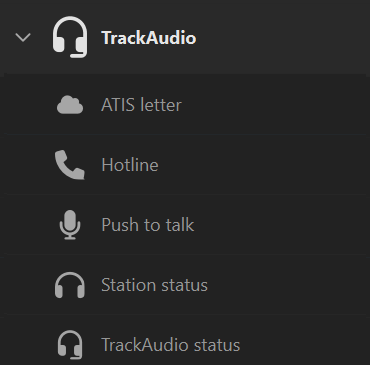

After installation the plugin actions are available under the TrackAudio category:

Screenshot of the Stream Deck profile UI with the keys categories filtered to track Screenshot of the Stream Deck profile UI with the dials categories filtered to track

Last updated on (v4.2.0)
